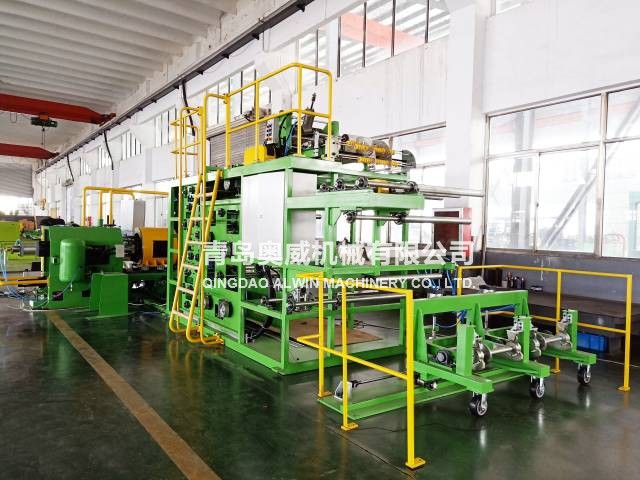

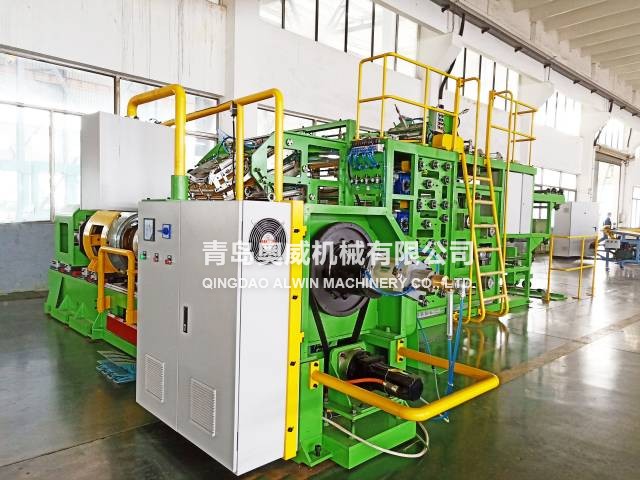

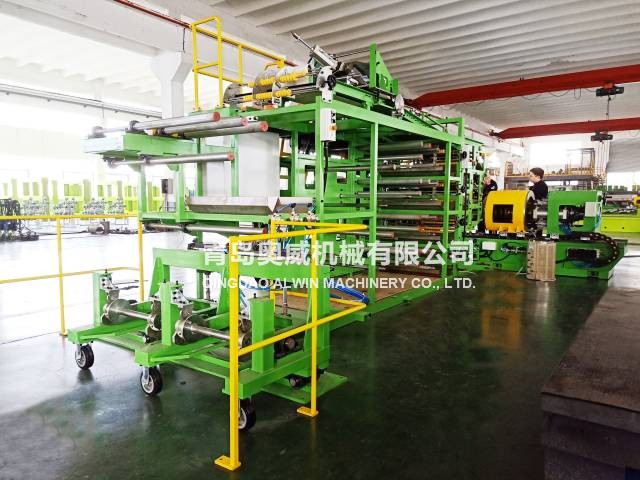

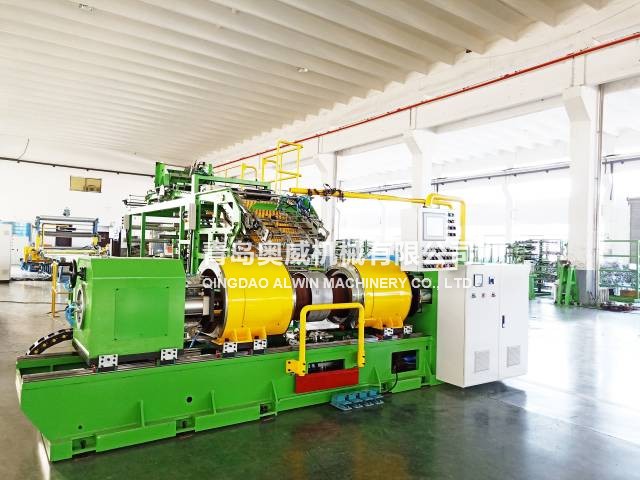

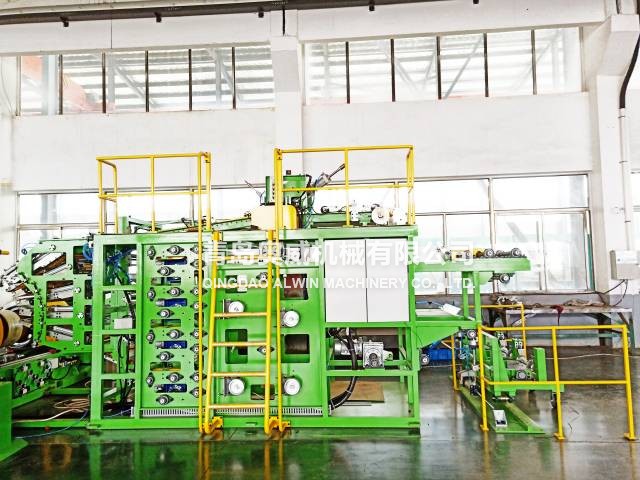

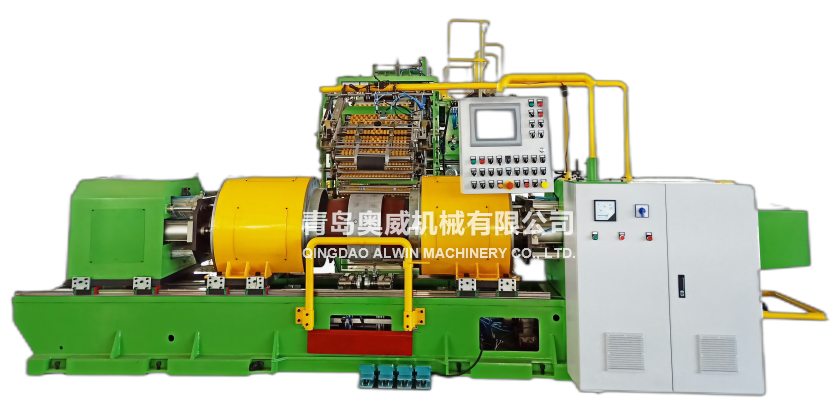

This machine is suitable for motorcycle tire,car tire,truck car tire building. Its forming drum adopts metal AB structure while tire building adopts finger turn down,bladder turn up.
This machine is suitable for motorcycle tire,car tire,truck car tire building. Its forming drum adopts metal AB structure while tire building adopts finger turn down,bladder turn up.
| 型號Type | BTU-0812 | BTU-1216 | BTU-1518 | 可根據客戶輪胎規格定制機型 The tyre building machine can be customerized according to different tyre specification. |
鋼絲圈直徑 Bead dia.(mm) | 8’’-12’’ | 12’’-16’’ | 15’’-18’’ | |
鋼絲盤寬度 Chuck width(mm) | 180-450 | 160-450 | 170-450 | |
主軸中心高度 Spindle center height(mm) | 900 | 900 | 900 | |
主軸轉速 Spindle speed(r/min) | 35/70/200 | 35/70/200 | 35/70/200 | |
外形尺寸 Overall dimension(L×W×H) | 5090×1370×2100 | 5200×4130×2100 | 5200×1500×2100 | |
重量 Weight(KG | 4200 | 5000 | 5500 |
