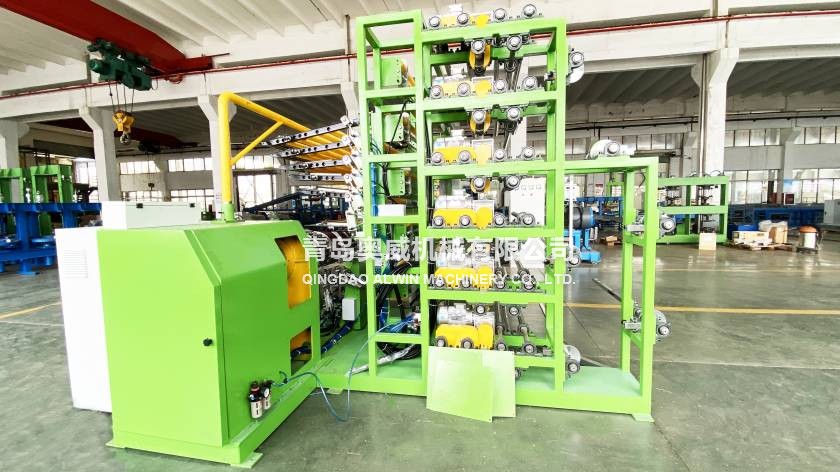

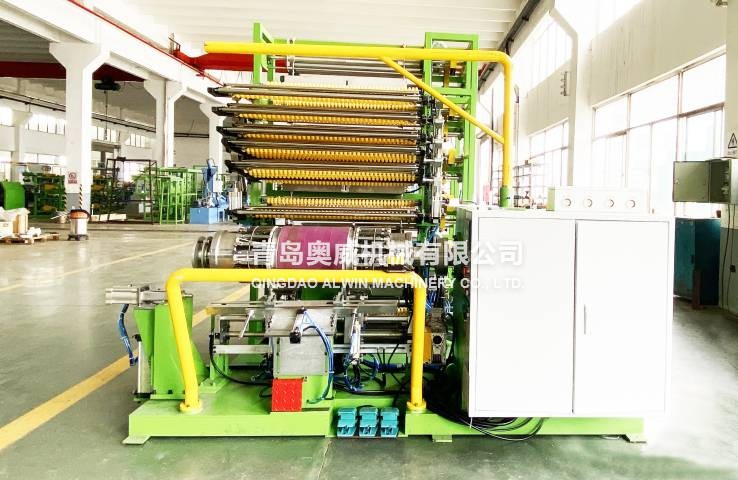

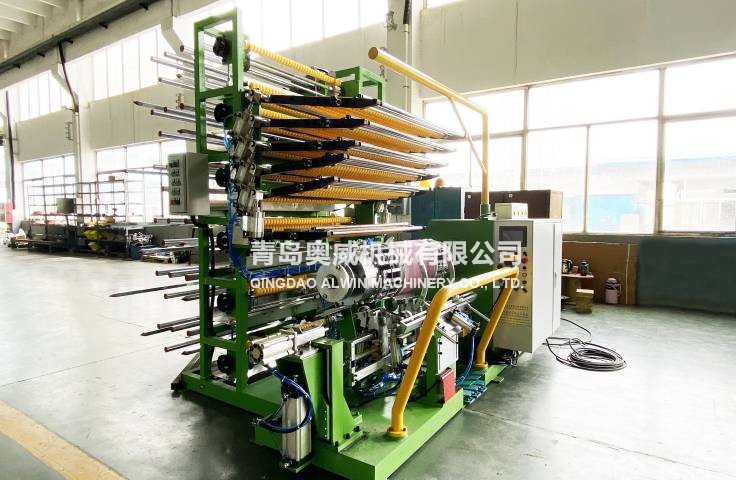

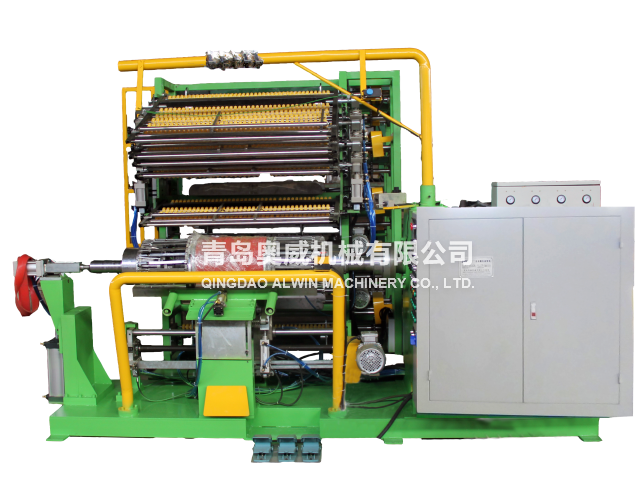

The building machine is used for produce beach tire and lawn tire.Integration of PLY applying,bead applying & cord turn-up,high degree of automation,good quality green tire building,easy and simple operation,it is advanced tire building machine equipment in China.
輪輞直徑 Rim tire dia. (mm) | 4”6”7” | 8”10”12”13” |
機(jī)頭中心高度 Center height of head (mm) | 850 | 870 |
機(jī)頭BS可調(diào)范圍 BS max. scope (mm) | 180-350 | 350-600 |
工作氣壓 Working pressure (Mpa) | 0.7-0.9 | |
簾布卷最大直徑 Max. dia.of cord fabric roll (mm) | 450 | |
襯布卷最大直徑 Max. dia. of lining cloth roll (mm) | 400 | |
外形尺寸 Overall dia. (mm) | 750x1200x1850 | 3200x1150x1880 |
