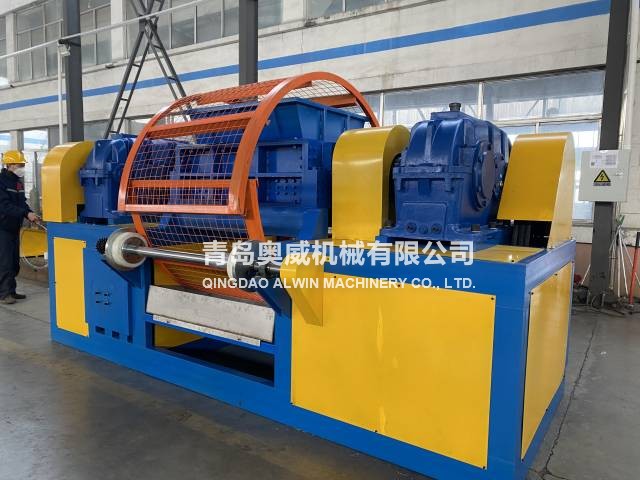

Two shaft shredder machine is used for shredding truck tires which the tire diameter is under 1 200mm.Automatic control by PLC, with function of start, stop, reverse,overload automatic reverse.
Two shaft shredder machine is used for shredding truck tires which the tire diameter is under 1 200mm.Automatic control by PLC, with function of start, stop, reverse,overload automatic reverse.
| 型號Model | ZPS-800 | ZPS-900 | ZPS-1200 |
進料規(guī)格 Feeding size | ≤800mm | ≤900mm | ≤1200mm |
出料規(guī)格 Discharge size | 30x50mm | 50x50mm | 60x60mm |
電機功率 Motor power | 22x2kw | 30x2kw | 45X2kw |
外觀尺寸 Dimension | 3450x2100x2400mm | 3500x2500x3500mm | 4000x3400x3700mm |
處理量 Capacity | 1-3t/h | 2-4t/h | 3-6t/h |
曬網功率 Screen power | 1.5kw | 1.5kw | 2.2+0.55kw |
主軸轉速 Main shaft speed | 19r/min | 23.4r/min | 21.8r/min |
| 刀片數量Number of blades | 18pcs, made of alloy steel | 18pcs, made of alloy steel | 20pcs, made of alloy steel |
重量/T Weight | 約6T | 約6.5T | 約16.2T |
