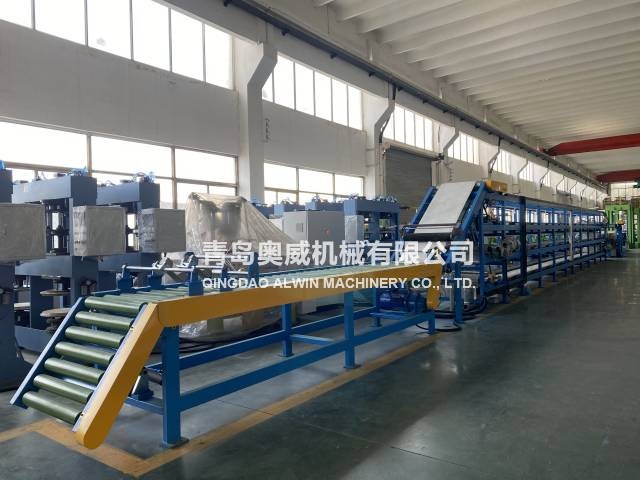

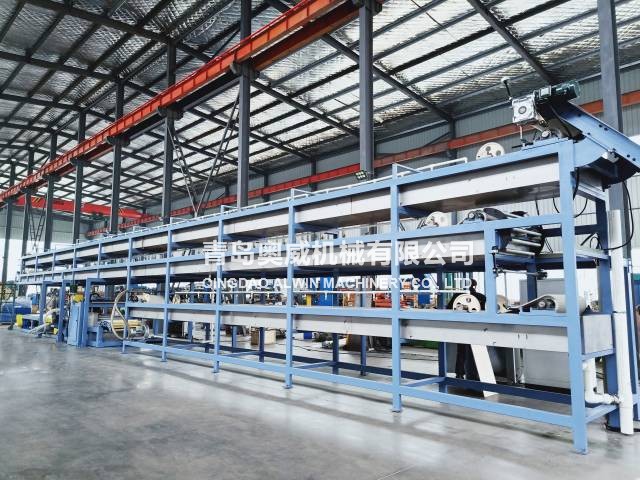

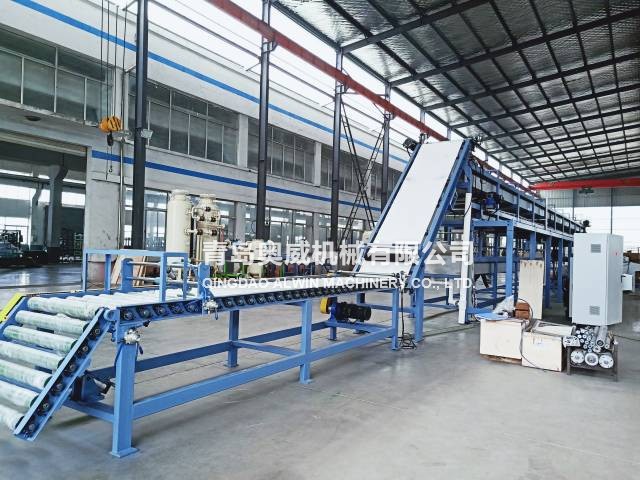

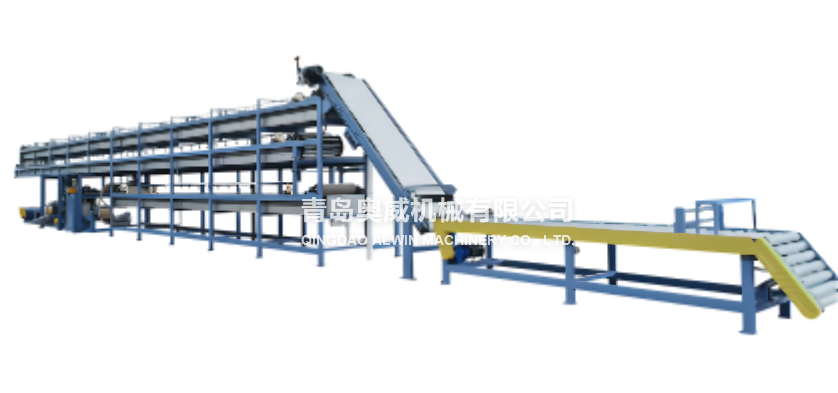

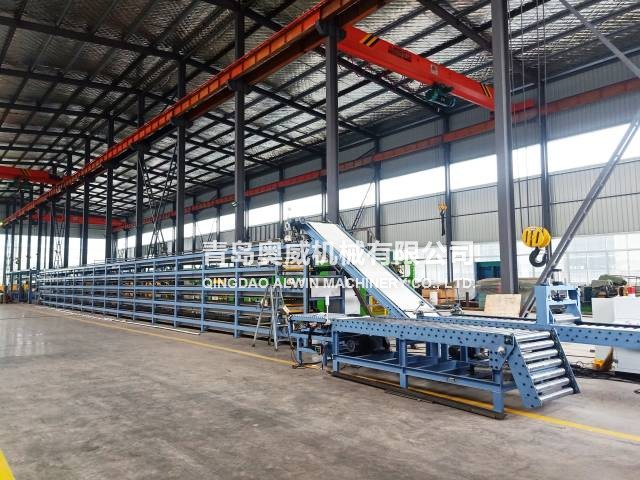

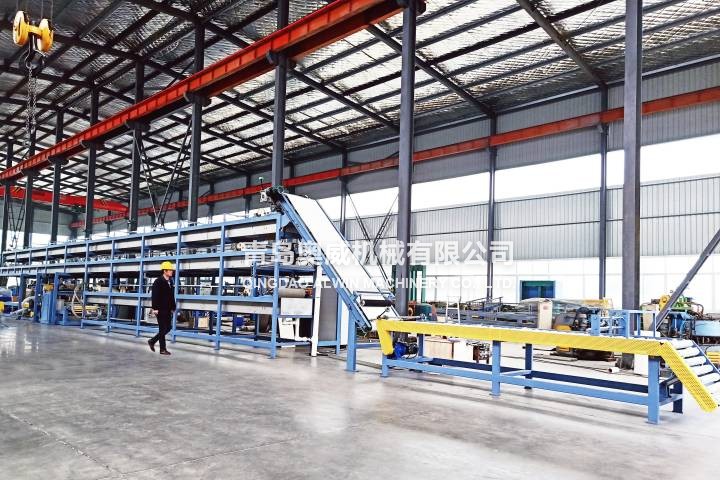

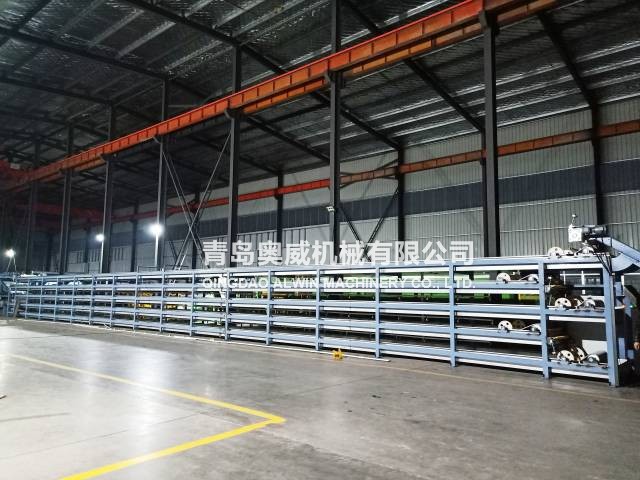

The machine is for extrusion of tire tread,sidewall etc.of bias tyre, semi/all steel radial tyres. It consists of take-off, contraction, continuous weighing, marking, calendaring and sticking base system, cooling, speed setting, cut-off, accelerated separation, water blow-off, inspection, spreading and spraying rubber cement, take-up device etc.,.
生產(chǎn)線速度 Line speed (m/min) | 5-25m/min |
生產(chǎn)輥面寬度 Width of production roll (mm) | 650 |
提取面高度 Extraction height (mm) | 900 |
收取溫度 Pick-up temperature (℃) | ≤40 |
裁刀 Cutter | Max. thickness of the tread cutting: 20mm |
最大裁斷寬度 Max. cutting width (mm) | 450 |
切割角度調(diào)整范圍 Range of cutting angle adjustment | 35°±5° |
切割部件長度公差小于 Length tolerance of the cutting component less than | ±3 |
裁斷頻率 Cutting frequency | 10-15 cuts/min |
壓縮空氣壓力 Pressure of compressed air (Mpa) | 0.6-0.8 |
電機(jī)總功率 Total motor power (kw) | 23.3 |
冷卻水用量 Cooling water consumption (m3/h) | 50-60 |
外形尺寸 Overall dia. (LxWxH) (mm) | 28000x2000x2800 |
重量 Weight (kg) | 20000 |
